Hindustan Electric Motors

Hindustan Electric Motors Exporters and Suppliers

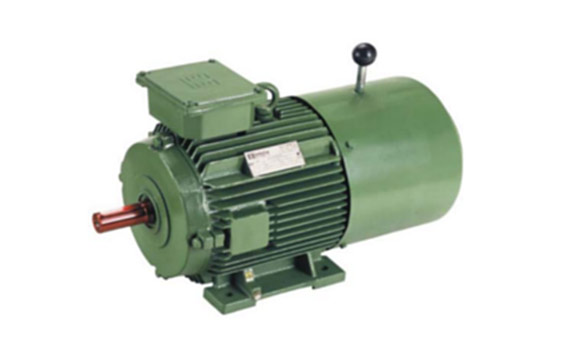

Brake Motors

Construction

Brake Motors are used for various applications where instantaneous stopping of the driven load is required. The operation of the brake is “FAIL SAFE TYPE” i.e. normally ON. When the electrical power to the motor is cut–off or the power fails, the brake is applied.

Brake motor is a combination of an A.C. induction motor and an electromagnetic AC or DC brake. The electromagnetic brake is mounted on the non–driving end of the motor.

DC brake motors are provided with a rectifier which provides the required DC voltage to the brake coil which in turn operates the brake. The supply to the rectifier is fed from any two terminals (between any two phases) in the main terminal box of the motor.

General applications of Brake motors are printing machinery, textile machinery, rolling mills, cranes & hoists, material handling equipments, machine tools etc.

General applications of Brake motors are printing machinery, textile machinery, rolling mills, cranes & hoists, material handling equipments, machine tools etc.

When the power to the motor is switched off, a braking torque is generated which presses the armature plate of the brake against the mounting flange. When the supply resumes, a magnetic field is produced in the brake coil and this pulls the armature plate against the spring force and the shaft is now free to rotate.

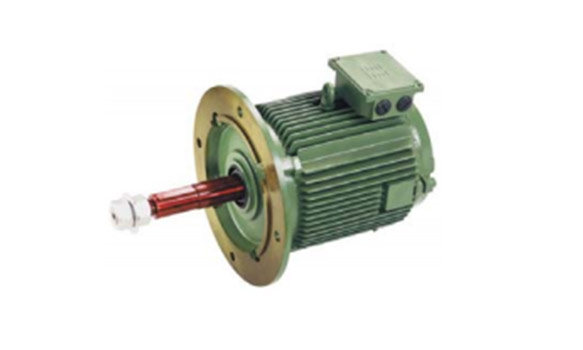

Cooling Tower Motor -Standard & Flameproof

Cooling tower motors are specially designed flange mounted motors in totally enclosed construction to suit air conditioning & refrigeration industries. They are provided with special long shaft construction with external threaded end to directly mount the fan blades. This also helps in the better cooling of the motor. Motors are compact in design & less in weight to facilitate easy maintenance. They are available as standard catalogue designs or as custom built.

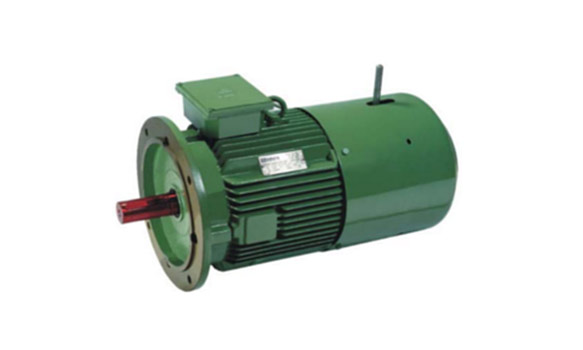

Crane Duty Motors

Crane duty motors are specially designed for frequent starts/stops & reversing required in cranes & lifts of all types. They can also be used in applications such as material handling, weirs & sluices, auxiliary motors in rolling mills or wherever intermittent drives are required.
